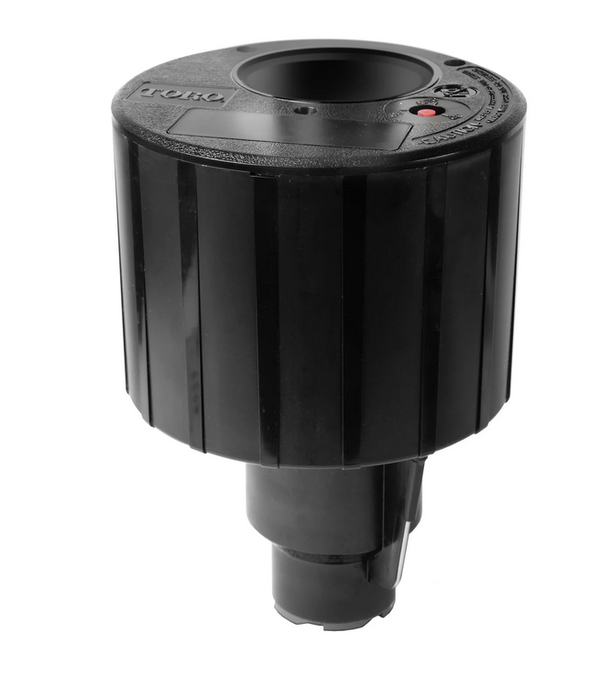

Toro- 1.5" INFINITY, Body Assy. Part# 110-INF50-4

Toro- 1.5" INFINITY, Body Assy. Part# 110-INF50-4
CA$363.28
Item number: INF50-4

Part# INF50-4

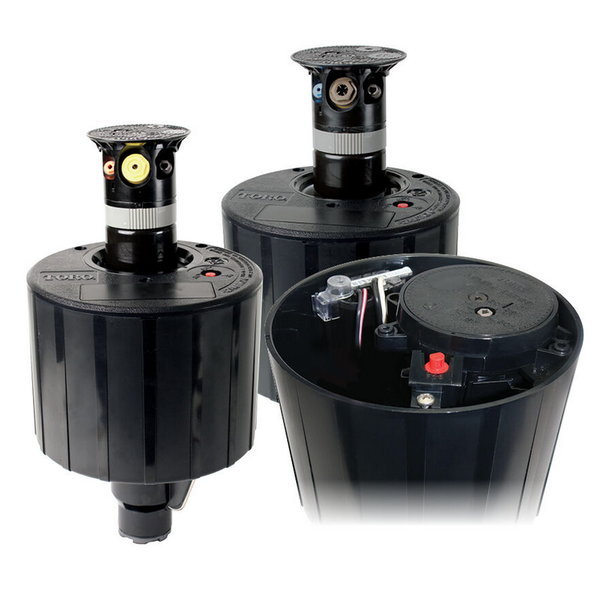

TORO INFINITY SPRINKLER BODY, RISERLESS, 1.5" DCL SOL.



  • One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
  • Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!
  • Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!
  • Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!



SPECIFICATIONS

Brand - Toro
Low Angle Nozzle Trajectory - 15°
Nozzle Trajectory - 25° & 15°
Optimum Pressure - 100 PSI
Precipitation Rate -  0.46" - 0.58" per HR
Pressure Rating Range - 40 - 150 PSI
Radius Spray Distance - 55' - 92'
Series - INFINITY
Length -  7.500 IN (19.050 CM)
Width -  7.500 IN (19.050 CM)
Height - 11.410 IN (28.981 CM)
Weight - 4.500 LB (2.041 KG)
